Product Details:
Payment & Shipping Terms:
|
| Table Travel (X) (mm): | 780 | Number Of Axes: | 3 |
|---|---|---|---|
| Machining Capacity: | Medium Duty | Table Travel (Y) (mm): | 380 |
| Table Travel (Z) (mm): | 380 | Spindle Taper: | R8 |
| Range Of Spindle Speed(r.p.m): | 45 - 4500 R.p.m | Condition: | New |
| Table Travel (mm): | 780x380x380 | Type: | VERTICAL |
| Spindle Motor Power(kW): | 2.2 | Voltage: | 380v 410v 220v |
| Dimension(L*W*H): | 1550*1650*2250 | Weight (KG): | 1400 |
| Warranty: | 13 Months | Key Selling Points: | Competitive Price |
| Applicable Industries: | Machinery Repair Shops, Manufacturing Plant | Showroom Location: | Colombia, Indonesia, Mexico, Russia |
| Marketing Type: | New Product 2020 | Machinery Test Report: | Provided |
| Video Outgoing-inspection: | Provided | Warranty Of Core Components: | 1 Year |

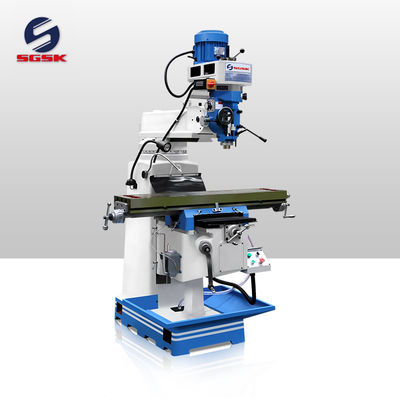

| Core Components: | Bearing, Motor | Name: | 4 Axis Milling Machine 3 Axis Steel 4H Turret Milling Machine |
| After Warranty Service: | Video Technical Support, Online Support | Local Service Location: | Chile, Peru, Indonesia, Russia |
| Port: | Qingdao Or Any Port In China |
|
Specifications
|
Units
|
4H
|
5H
|
|
|
Table size
|
mm
|
1270x254(10”x50”)
|
1370x305(12”x54”)
|
|
|
Table travel
|
mm
|
780/400/400
|
780/ 420 /400
|
|
|
T slot(number-width-pitch)
|
mm
|
3-16-50
|
3-16-65
|
|
|
Spindle taper
|
|
standard:R8
optional:ISO40 |
standard:R8
Optional :ISO40 |
|
|
Spindle speed range
|
rpm
|
standard:(16 steps)50HZ:65-4500 60HZ:80-5440
|
|
|
|
|
|
optional(variable)65-4000
|
|
|
|
Spindle travel
|
mm
|
127
|
127
|
|
|
Spindle feed range
|
mm
|
0.04,0.08,0.15
(3 steps) |
0.04,0.08,0.15
(3 steps) |
|
|
Distance between spindle nose and table surface
|
mm
|
90-510
|
90-510
|
|
|
Main motor power
|
kw
|
2.2
|
2.2
|
|
|
Head rotation (left - right )
|
°
|
±90°
|
±90°
|
|
|
Head rotation (front - rear)
|
°
|
±45°
|
±45°
|
|
|
Weight
|
kg
|
1400
|
1600
|
|
|
Overall dimension
|
mm
|
1550x1650x2250
|
1550x1650x2250
|
|
